Silicon - Beamtests at KEK

Contents:

PPS at CERN:

Mirror of CERN Twiki pages

Schedules:

• KEK PS schedule update, KEK 12 GeV PS
• CERN SPS

Dec00 beamtest at KEK (T478)

(PRELIMINARY) Results from the KEK analysis, presented in the Feb SCT week, 01/02/16

Run summary (xls), updated 01/11/01

Drawings of the setup in the thermobox (2 pages), T. Kohriki, 01/01/04
Sensor layout of the barrel module (B2), and of the forward module (W32) where the beam hit, 01/01/12
Equipments storage after the beamtest in Dec 00, Y. Unno, 01/01/04

Schedule of the beamtest, Y. Unno, 00/11/06
Equipments and responsible of the beamtest, Y. Unno, 00/11/06
Module sequence in the thermo box, Y. Unno, 00/11/27

Valencia forward module box - addition request of the "srew holes" from KEK, Y. Unno, 00/11/20

Valencia analysis page ...

Aug00 beamtest at CERN

Leakage currents, data, 00/11/08

... and CERN page

May00 beamtest at CERN

... and CERN page

Dec99 beamtest at KEK (T450)

• New results with proper analysis, updated 00/03/21

• A report made in the Jan 2000 SCT week (7MB), 00/02/16
• Schedule of the beamtest, Y. Unno, updated 99/11/29
• 12 GeV PS Machine Time Schedule 99-3-3, 99/11/16
• Photo's out of the beamtest, 99/12/18

• Results(PRELIMINARY!): updated 00/01/29

  DUT's:
  Module 0: KEK-ABCD#1, 285 um, trimmed at 2 fC to 200 mV
  Module 1: FR-ABCD, 285 um, trimmed at 2 fC to 200 mV
  Module 2: KEK-ABCD#2, 325 um, not trimmed
  Module 3: FR-irrad det-ABCD, 285 um, trimmed?
  Module 4: KEK-CAFE, 285 um
  Module 5: CG3, anchor

  Run conditions: Edge detection=ON, Mode=Any hits
  Beam region: 2cm x 2 cm triggered by 3 planes of scintillators

  • Modules setup, -10 deg.C, +10 deg.C, ..., 00/01/19
  • Sample of run-end displays:
    telescope hit map, pulse height, number of hit distributions,
    DUT hit maps and correlation with anchor,
    Hit positions and correlation with anchor
  • Pedestal noise of Modules 0, 1, 2, 4, out of in-situ calibration runs, null charge injection, Detector bias 100V
  • Summary of calibration curves
    Scan points with larger markers were those used for the fit
    Det4(Mod4): open square (nominal spec), filled square (KEK internal)

  • In-situ calibration: Bias 100V (Irrad 350V)

    Mod0(KEK-ABCD#1), Mod1(FR-ABCD), Mod2(KEK-ABCD#2), Mod3(FR-irrad), Mod4(KEK-CAFE),
    Scan points, typical threshold scan, response curves, gains, noises, summaries
    KEK-CAFE calibration at Fuji, module (Bias 150V), hybrid,
  • Threshold scans

    Scan points: typically, 0.8, 1.0, ..., 2.2, 2.5, 3.0, ..., 8.0 fC
    at bias voltages of 60, 80, 100, 120, 140, 160, 180, 200 V
    low threshold points being re-calibrated after the calibration curve fit
  • Bias voltage dependence of median charges

    Mod2(325 um) being renormalized to thickness 285 um

Feb98 KEK beamtest

• Tested module information, 98/8/5

• Run log data of the Feb 98 KEK run, 98/6/30

Oct - Nov 97 beamtest at CERN (Irradiated detectors, etc)

• Photo's of the irradiation, Aldo Saavedra, 98/1/21

June 97 beamtest at KEK (T416)

• Preliminary results for discussion only

• Analysis program by H. Kitabayashi, 97/6/21

• Schedule and Run plan,97/6/11

June 97 beamtest at CERN

Feb 97 beamtest at KEK

CERN H8 beamtest in 1997

KEK 96 PS operation

H8 96 beamtests at CERN

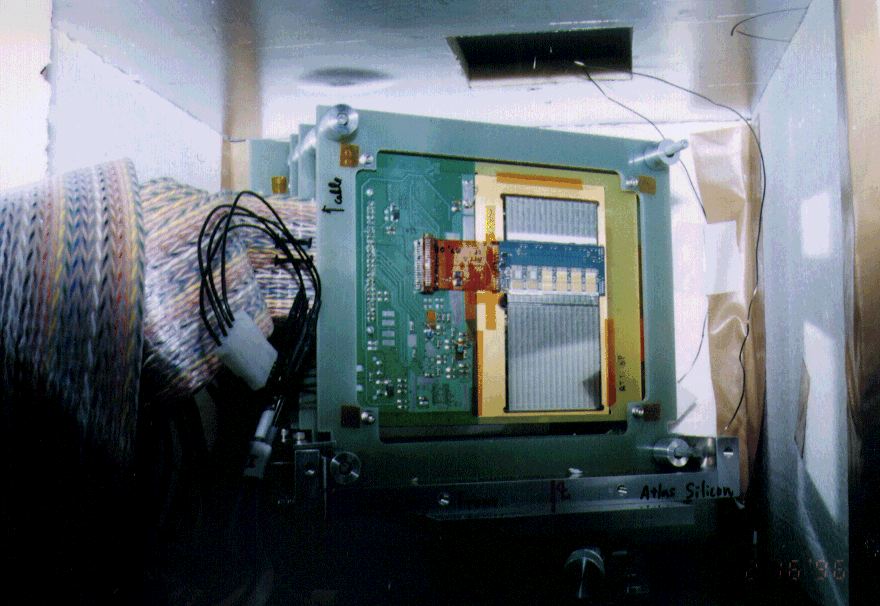

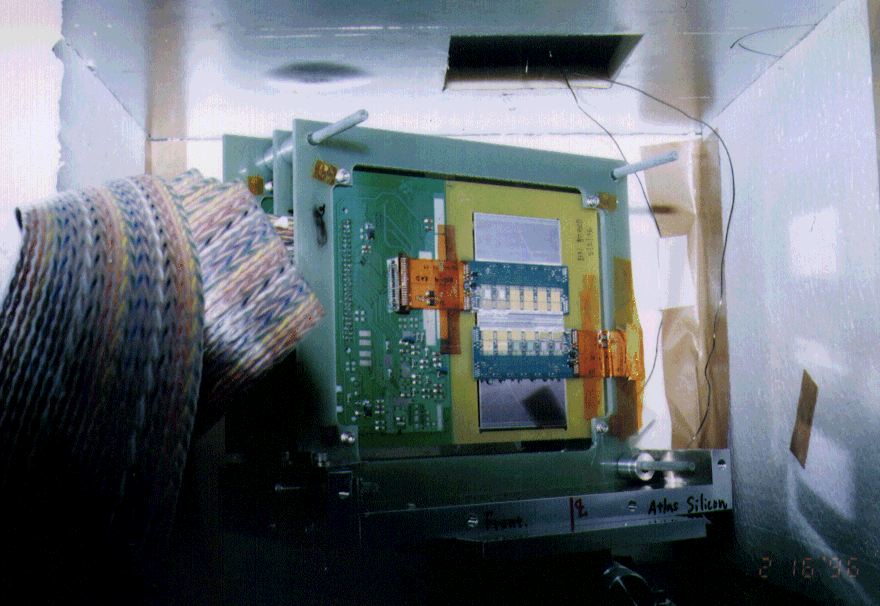

Feb 96 beamtest at KEK (T383)

Summer 95 H8 beamtest at CERN

Feb 95 beamtest at KEK(T355)

June 94 beamtest at KEK(T330)

March 93 beamtest at KEK(T280)

KEK Radiation Work Forms:

• Official papers required by KEK: (1) Member agreement form, (2) Radiation work form

Others:

• Signal simulation by R.Sonnenbrik, J.Leslie, Y.Unno ( readme, installer, signalsim.tar, distribution list ) Note: If you have copied the source, please leave a e-mail to Y.Unno (unno@post.kek.jp)
• SCT binary readout DAQ hard and softwares
• New offline machine and data storage A faster UNIX machine is available for offline analysis at KEK.. All the beamtest data are to be transferred to the group area (Tape storage) on this machine.
  1. Machine name: ccint1.kek.jp
  2. Group disk area: /raid/3b4/data
• QMW H8 testbox (pdf), 99/10/27

• Some useful kumacs...
